Club Performance Coilover Suspension Kit For GRAVEL RALLY SUBARU GC8 GRAVEL RALLY 1-WAY

  • Sale
  • Regular price $2,388.00
SKU: YS01-SB-GR002
Tax included.

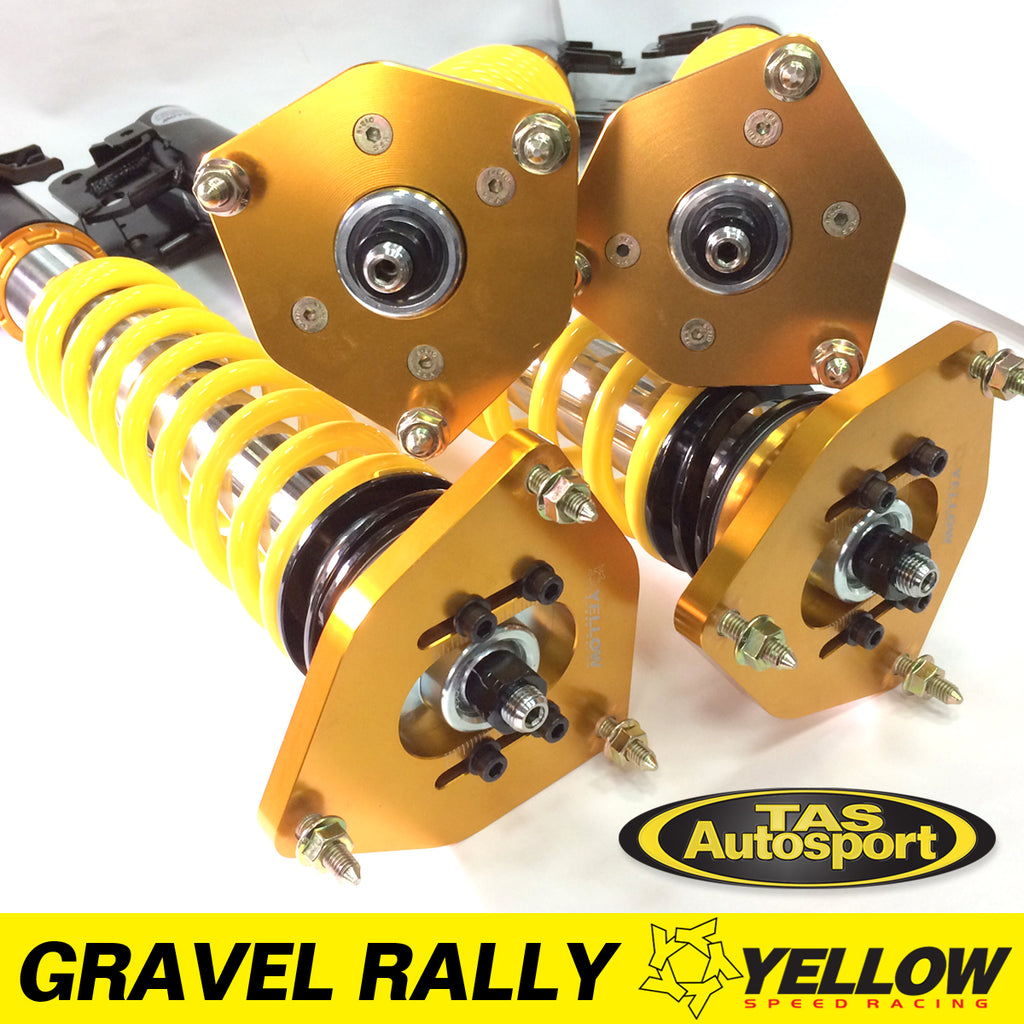

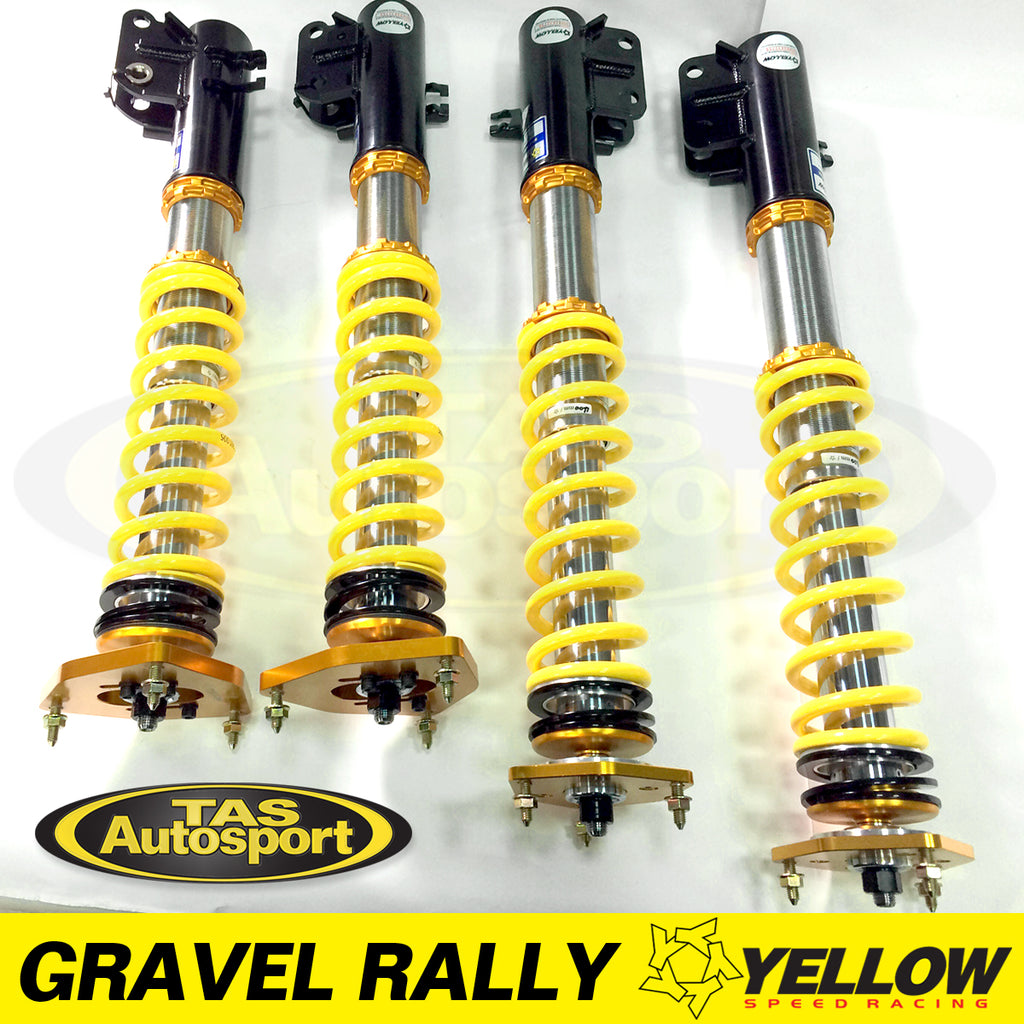

GRAVEL RALLY 1 Way - YELLOW-SPEED COILOVERS SUSPENSION SUBARU GC8

SUBARU GC8 93-01 (WRX inc STI)

Part No. YS01-SB-GR002

Spring Rates: 5kg Front - 4kg Rear

LENGTH OF TRAVEL: FRONT 175mm. REAR 200mm

Upper Mounts - Front: Hardened Rubber Upper Mount. Rear: Alum Upper Mount

Strut Design -
FRONT: ★ : inverted strut design (shock body construction with an outer sleeve)
REAR: ★ : inverted strut design (shock body construction with an outer sleeve)

For 1-way coilovers, the damper adjuster would change both compression and rebound at the same time when you make adjustments.

THESE COILOVERS ARE SPECIAL ORDER & ARE NOT STOCKED

DELIVERY TIME APPROX 3-4 WEEKS FROM PAYMENT DATE
Note: Payment IS required prior to us ordering for you

Yellow Speed Racing's Dynamic Pro Gravel Rally Coilover Kits are an affordable coilover option for driver's that prefer the adrenaline of off road racing over normal track racing.

Dynamic Pro Gravel Rally Features:

  • Long shock travel (similar length to OEM travel) (varies by application)

  • Raises the vehicle higher than factory suspension (2"+, depending on application)

  • Lower bracket is designed for additional rigidity and strength.

  • For suspension systems utilizing a MacPherson strut type, a inverted monotube design is utilized to reduce excessive heat transfer from the brake system to the damping oil and shock piston.

  • This suspension system comes standard with hardened rubber front upper mounts for a reduction in NVH. We also offer pillow ball upper mounts w/ camber plates as an alternative for customers. Please note that pillowball uppers w/ camber plates will cause significant noise increase from the suspension. It is highly recommended to retain the rubber upper mounts for NVH reduction. No returns will be offered due to noise from suspension if client opts for pillowball upper mounts.

  • Front upper mount is 4mm thicker than the standard upper mount (depending on applications).

  • 55mm shock bodies with monotube inverted shock insert are utilized to ensure maximum durability and strength.

*NO WARRANTY ON GRAVEL RALLY COMPETITION COILOVERS AS THESE ARE DESIGNED FOR RACE USE ONLY*

Upper Mount Front Alum with Camber adjustment
Upper Mount Rear Alum Upper Mount
Spring Rate Front 5
Spring Rate Rear 4
Body
