RP1001 Seat Fixed Back Mach II Black ADR ADR Compliant
Fitting Notes:
SAAS Seats are best fitted in conjunction with either of the following components:
- USS01 - A Universal Seat Slider is fitted to the base of the seat which is then attached to a custom seat subframe. This allows the seat to move back and forward.
- LBracket - These Brackets are designed for Fixed Back seats only. They attach your seat in a fixed position and are generally for motorsport applications. Be aware that the side mounting bosses for the LBracket are covered by the seat fabric and access will require a small incision to be made. The mounting bosses require a M8x1.25 high tensile bolt to affix the bracket.
The process of putting a new seat in your vehicle requires a custom subframe (providing an attachment point to the vehicle floor). We recommended you consult an approved engineer to fabricate mounting brackets - accredited engineers can also supply you with a seating label which reflects the new seating arrangements.
Features
- Colour: Black
- Offers improved seat comfort and side support
- Fixed Back
- M8x1.25 mounting bosses
- Wide harness slots compatible with 2" & 3" harness straps, 3, 4 and 5 point
- Can accept crotch strap with harness slot in base accessed between seat base cushions
- ADR Compliant (see Product Spec for details)
- Lifetime warranty on frame
- 12 month warranty on stitching and material

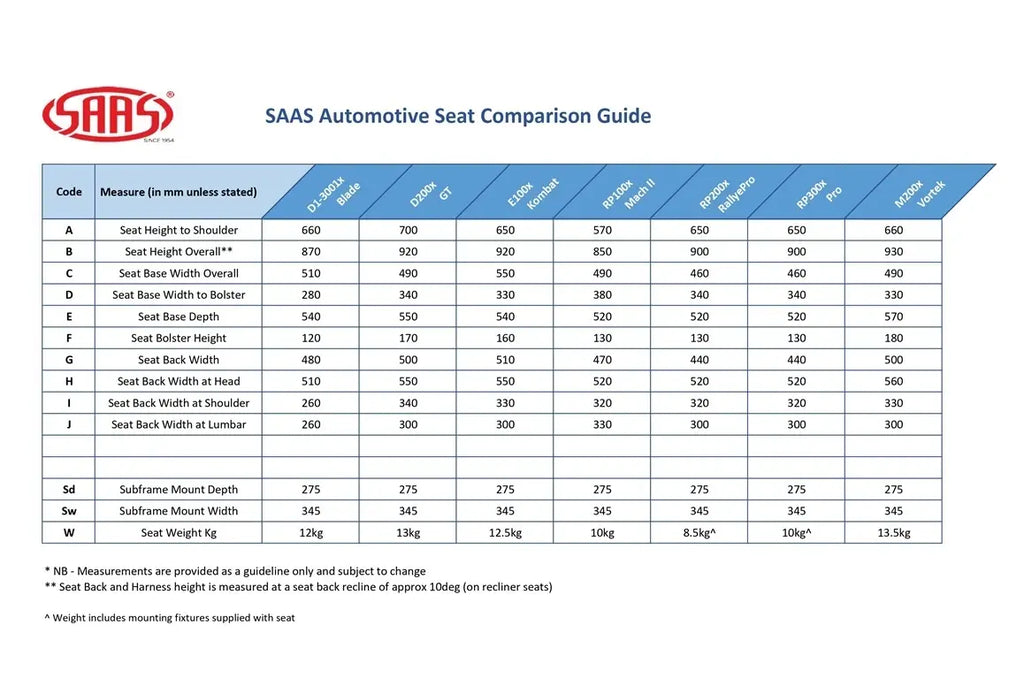

SPARES/SPECS

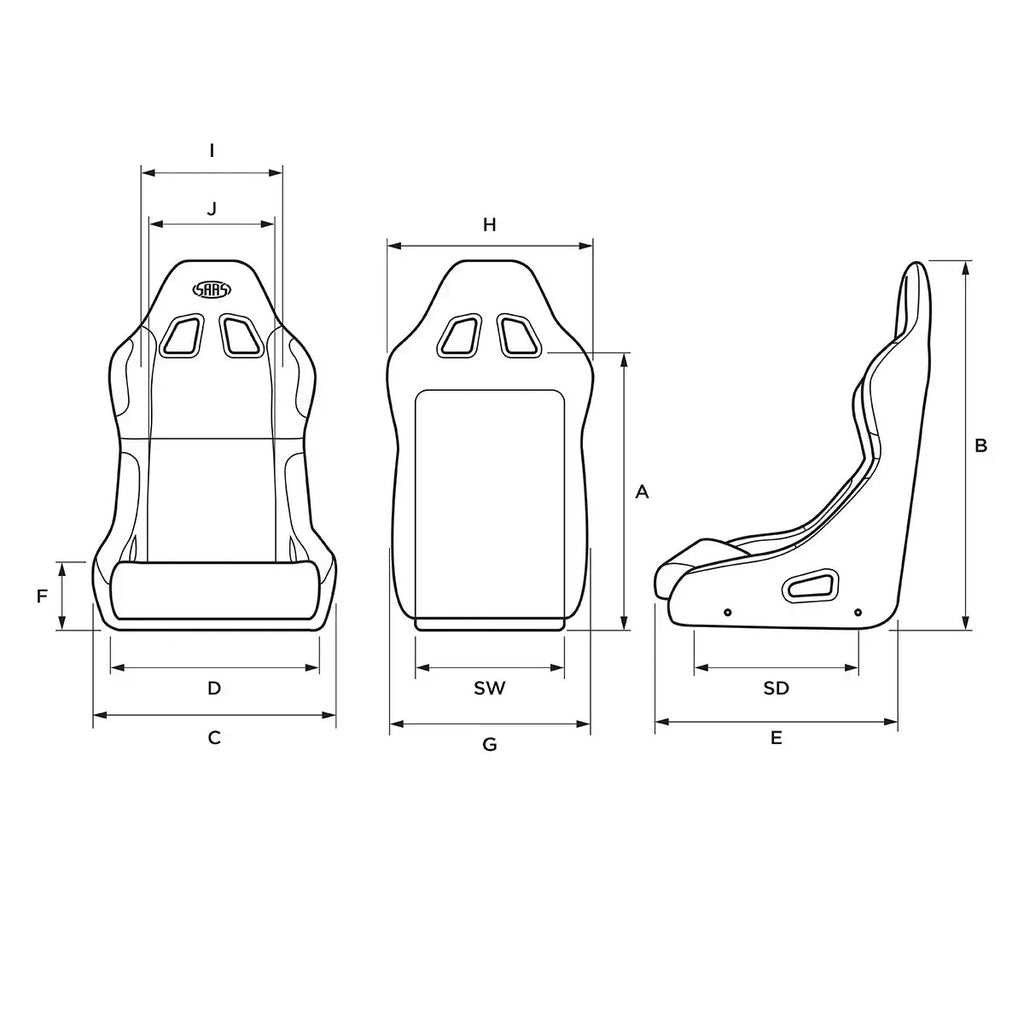

Subframe Mounts | 345mm (W) x 275mm (D) |
Mounting Boss | 4 x M8x1.25 |
ADR Compliance | ADR 3/03 - Seat and Seat Anchorages 2009 |
Seat and Anchorage Longitudinal 20g Test | ADR 3/03 5.5.1.1 & 5.5.2 |
Rearward Backrest Test | ADR 3/03 5.5. 3 |
Energy Dissipation Test | ADR 3/03 6.4 |
Head Restraint Test | ADR 22/00 |
